Main Information :
| Shell style | Straight plug |
| Internal components | 3 Pins |
| Sheating material | Brass shell and collet nut , nickel plated. Brass latch sleeve and mid pieces |
| Conductor Structure | Brass gold plated |
| Insulation | Peek |
| Conductor diameter | 1.3 mm |
| Maximum contact resistance | 3.6 mOhm |
| Rated current | 12 A |
| Test voltage ( Contact - Shell ) | 2.2 KV ( DC ) |
| Adapter cable | 3.10-4.20mm |
Description :

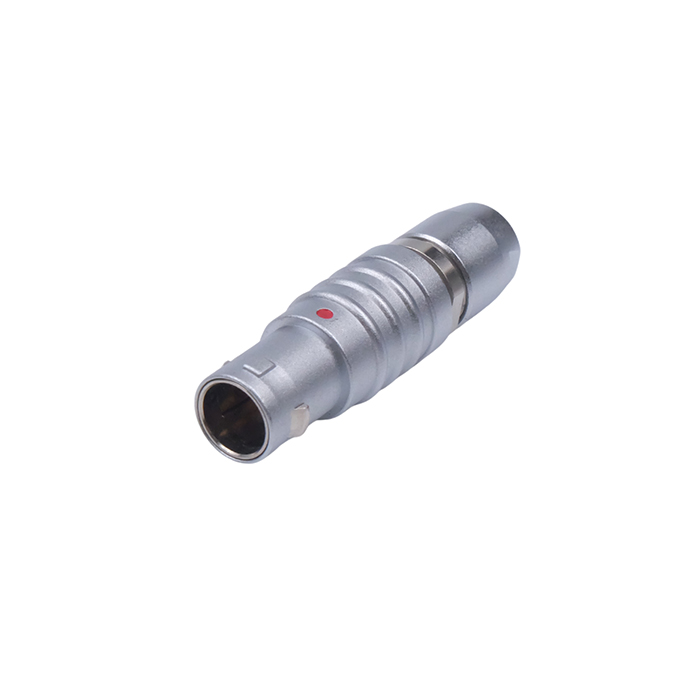

Push-Pull Self-locking Connector Model: 1BRGGD03CLAD42
Push-Pull Straight plug Shell Size 1B , 3 Socket Contacts, Solder, 3.10-4.20mm Collet – Cross Reference/Equivalent: FGG.1B.303.CLAD42
Datasheet:
