Main Information :
| Shell style | Straight plug |
| Internal components | 6 Pins |
| Sheating material | Brass shell and collet nut , nickel plated. Brass latch sleeve and mid pieces |
| Conductor Structure | Brass gold plated |
| Insulation | Peek |
| Conductor diameter | 0.5 mm |
| Maximum contact resistance | 8.7 mOhm |
| Rated current | 3 A |
| Test voltage ( Contact - Shell ) | 0.9 KV ( DC ) |
| Adapter cable | 4.30-5.20mm |
Description :

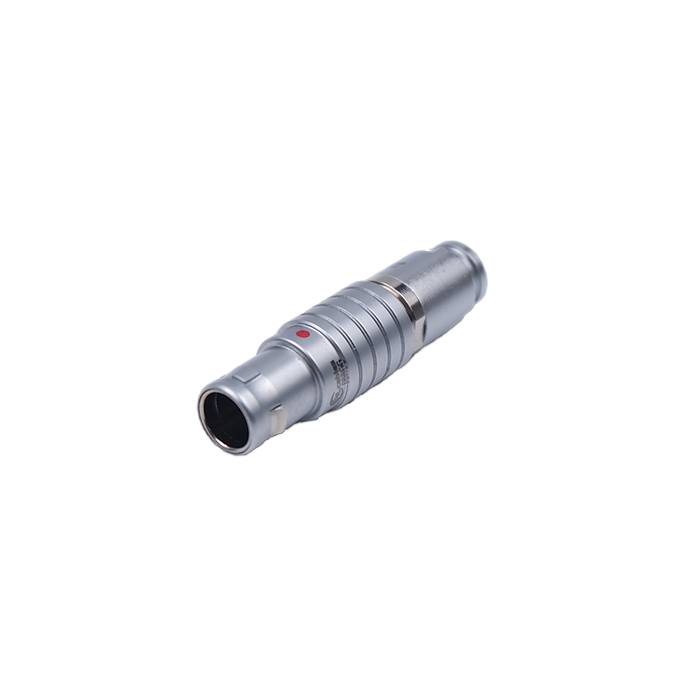

Push-Pull Self-locking Connector Model: 0BRGGD06CLAD52Z
Push-Pull Straight plug Shell Size 0B , 6 Socket Contacts, Solder, 4.30-5.20mm Collet – Cross Reference/Equivalent: FGG.0B.306.CLAD52Z
Datasheet:
