Main Information :
| Shell style | Straight plug |
| Internal components | 3 Pins |
| Sheating material | Brass shell and collet nut , nickel plated. Brass latch sleeve and mid pieces |
| Conductor Structure | Brass gold plated |
| Insulation | Peek |
| Conductor diameter | 0.9 mm |
| Maximum contact resistance | 4.8 mOhm |
| Rated current | 8 A |
| Test voltage ( Contact - Shell ) | 1.3 KV ( DC ) |
| Adapter cable | 3.30-4.20mm |
Description :

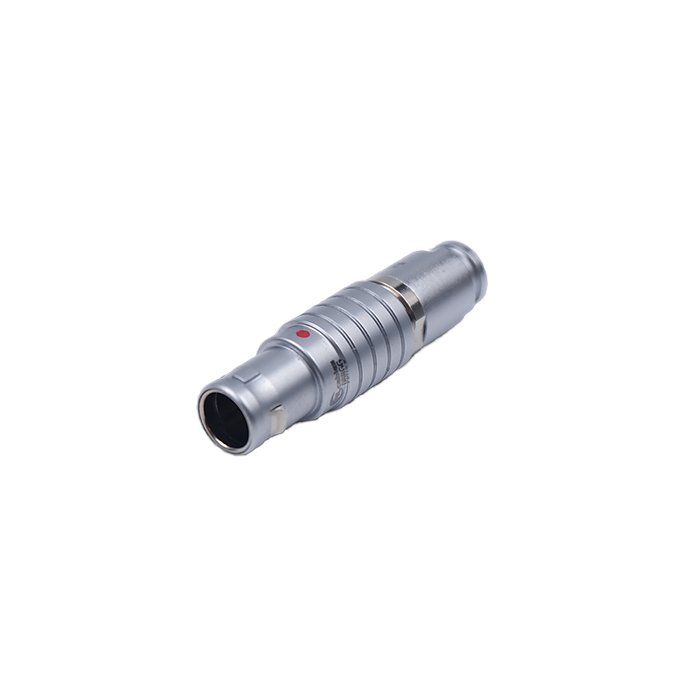

Push-Pull Self-locking Connector Model: 0BRGGD04CLAD42Z
Push-Pull Straight plug Shell Size 0B , 4 Socket Contacts, Solder, 3.30-4.20mm Collet – Cross Reference/Equivalent: FGG.0B.304.CLAD42Z
Datasheet:
