Main Information :
| Shell style | Fixed receptacle |
| Internal components | 3 Pins |
| Sheating material | Brass shell and collet nut , nickel plated. Brass latch sleeve and mid pieces |
| Conductor Structure | Brass gold plated |
| Insulation | Peek |
| Conductor diameter | 2 mm |
| Maximum contact resistance | 3.3 mOhm |
| Rated current | 25 A |
| Test voltage ( Contact - Shell ) | 2.1 KV ( DC ) |
| Adapter cable | 2.00-16.60mm |
Description :

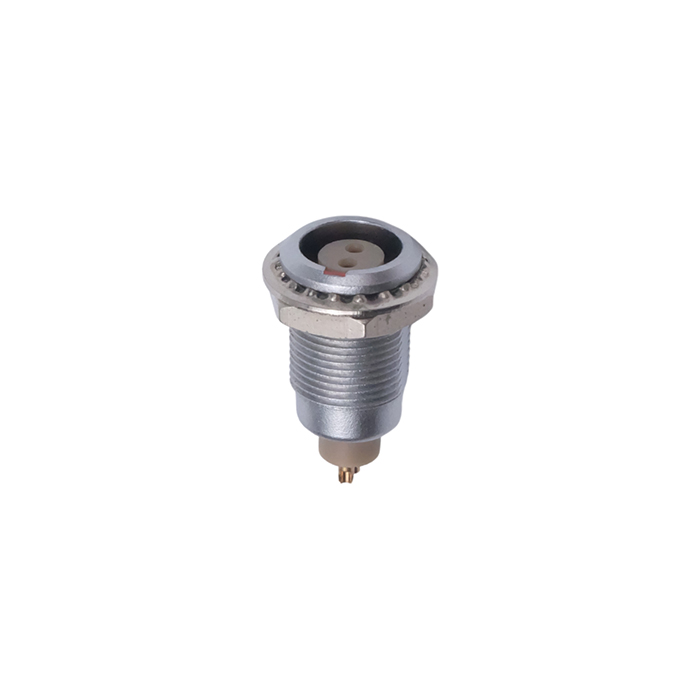

Push-Pull Self-locking Connector Model: 3TLGGD03CLL
Push-Pull Self-locking Fixed Receptacle Size 3T , 3 Socket Contacts, Solder , 2.00-16.60mm Collet – Cross Reference/Equivalent: EGG.3T.303.CLL
Datasheet:
