Main Information :
| Shell style | Straight plug |
| Internal components | 40 Pins |
| Sheating material | Brass shell and collet nut , nickel plated. Brass latch sleeve and mid pieces |
| Conductor Structure | Brass gold plated |
| Insulation | Peek |
| Conductor diameter | 0.7 mm |
| Maximum contact resistance | 6.1 mOhm |
| Rated current | 3 A |
| Test voltage ( Contact - Shell ) | 1.4 KV ( DC ) |
| Adapter cable | 15.10-16.00mm |
Description :

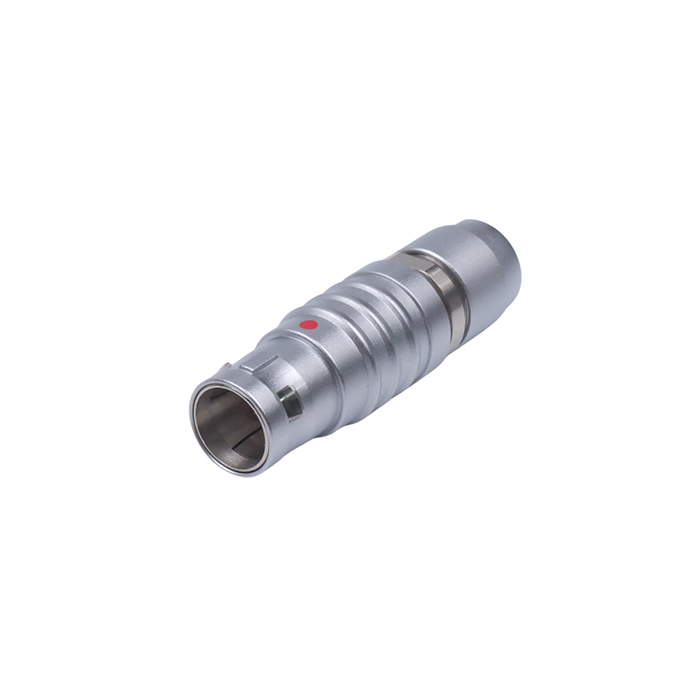

Push-Pull Self-locking Connector Model: 4BRGGD40CLAD16
Push-Pull Straight plug Shell Size 4B , 40 Socket Contacts, Solder, 15.10-16.00mm Collet – Cross Reference/Equivalent: FGG.1K.316.CLAC50Z
Datasheet:
