Main Information :
| Shell style | Straight plug |
| Internal components | 10 Pins |
| Sheating material | Brass shell and collet nut , nickel plated. Brass latch sleeve and mid pieces |
| Conductor Structure | Brass gold plated |
| Insulation | Peek |
| Conductor diameter | 0.9 mm |
| Maximum contact resistance | 4.8 mOhm |
| Rated current | 8 A |
| Test voltage ( Contact - Shell ) | 1.9 KV ( DC ) |
| Adapter cable | 8.30-9.20mm |
Description :

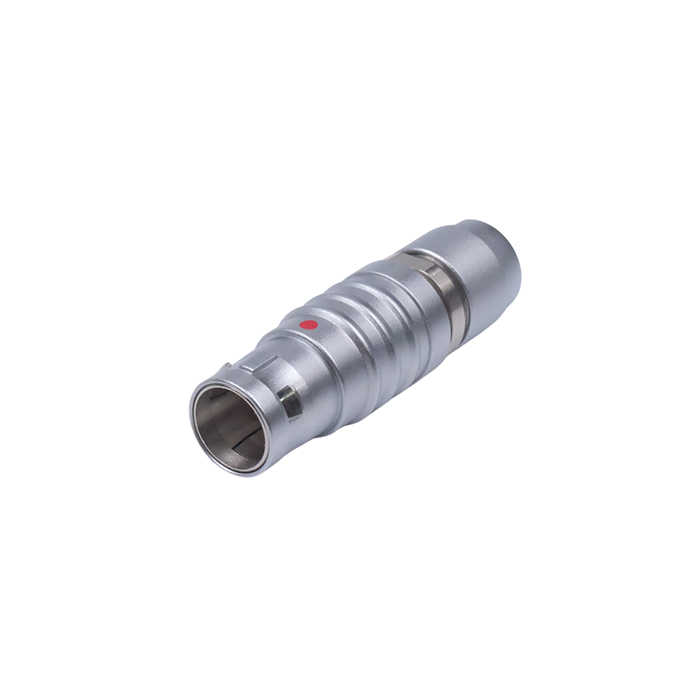

Push-Pull Self-locking Connector Model: 2BRGGD10CLAD92
Push-Pull Straight plug Shell Size 2B , 10 Socket Contacts, Solder, 8.30-9.20mm Collet – Cross Reference/Equivalent: FGG.2B.310.CLAD92
Datasheet:
