Main Information :
| Shell style | Fixed receptacle |
| Internal components | 2 Pins |
| Sheating material | Brass shell and collet nut , nickel plated. Brass latch sleeve and mid pieces |
| Conductor Structure | Brass gold plated |
| Insulation | Peek |
| Conductor diameter | 1.3 mm |
| Maximum contact resistance | 3.6 mOhm |
| Rated current | 15 A |
| Test voltage ( Contact - Shell ) | 2 KV ( DC ) |
| Adapter cable | 1.00-10.60mm |
Description :

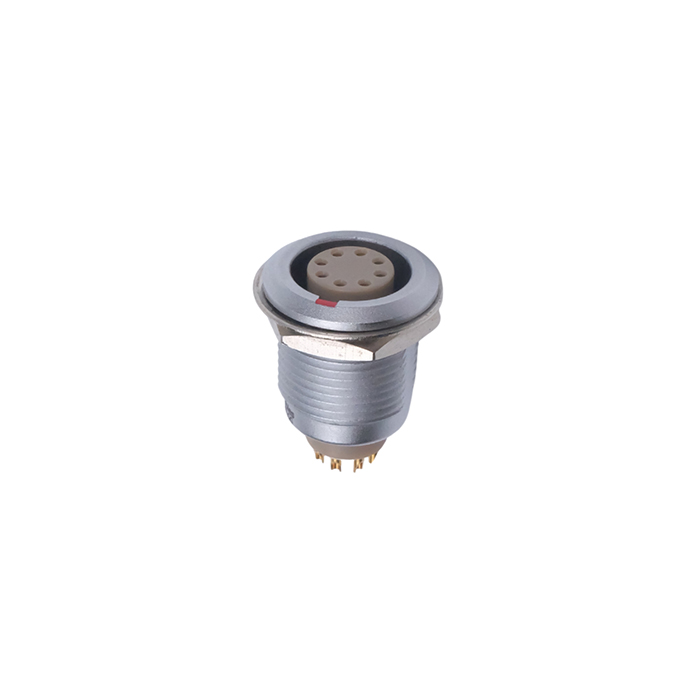

Push-Pull Self-locking Connector Model: 1BLGGD02CLL
Push-Pull Self-locking Fixed Receptacle Size 1B , 2 Socket Contacts, Solder , 1.00-10.60mm Collet – Cross Reference/Equivalent: EGG.1B.302.CLL
