Main Information :
| Shell style | Fixed receptacle |
| Internal components | 6 Pins |
| Sheating material | Brass shell and collet nut , nickel plated. Brass latch sleeve and mid pieces |
| Conductor Structure | Brass gold plated |
| Insulation | Peek |
| Conductor diameter | 0.5 mm |
| Maximum contact resistance | 8.7 mOhm |
| Rated current | 3 A |
| Test voltage ( Contact - Shell ) | 0.9 KV ( DC ) |
| Adapter cable | 1.00-8.30mm |
Description :

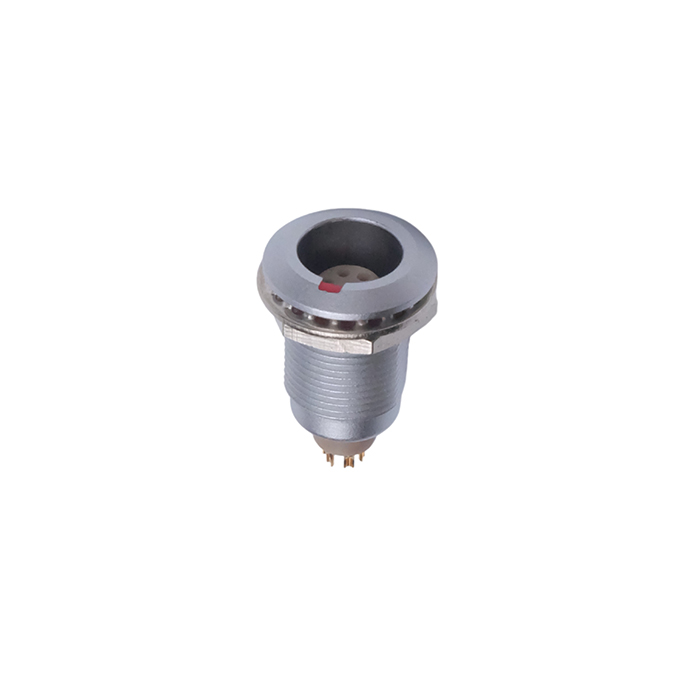

Push-Pull Self-locking Connector Model: 0BLGGD06CLL
Push-Pull Self-locking Fixed Receptacle Size 0B , 6 Socket Contacts, Solder , 1.00-8.30mm Collet – Cross Reference/Equivalent: EGG.0B.306.CLL
Datasheet:
