Main Information :
| Shell style | Straight plug |
| Internal components | 2 Pins |
| Sheating material | Brass shell and collet nut , nickel plated. Brass latch sleeve and mid pieces |
| Conductor Structure | Brass gold plated |
| Insulation | Peek |
| Conductor diameter | 0.5 mm |
| Maximum contact resistance | 8.7 mOhm |
| Rated current | 4 A |
| Test voltage ( Contact - Shell ) | 1.4 KV ( DC ) |
| Adapter cable | 2.80-3.50mm |
Description :

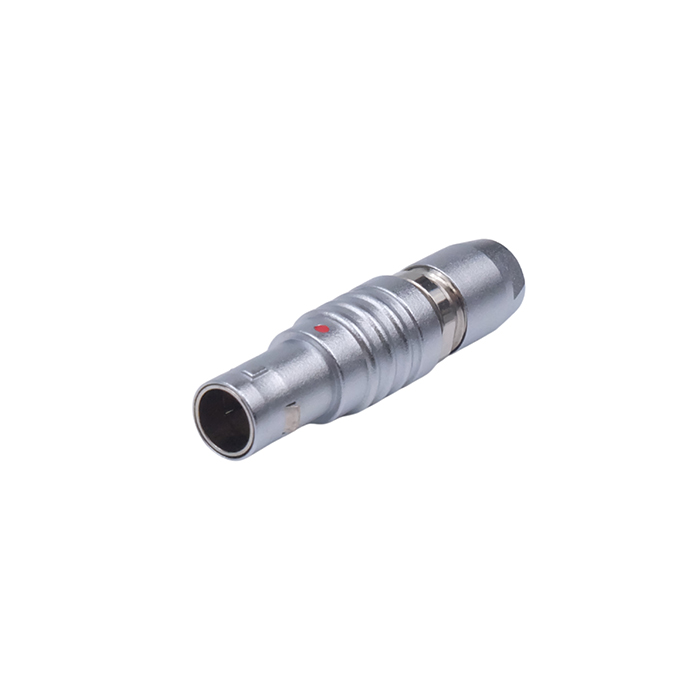

Push-Pull Self-locking Connector Model: 00RGGD02CLAD35
Push-Pull Straight plug Shell Size 00 , 2 Socket Contacts, Solder, 2.80-3.50mm Collet – Cross Reference/Equivalent: FGG.00.302.CLAD35
Datasheet:
