Main Information :
| Shell style | Fixed receptacle |
| Internal components | 4 Pins |
| Sheating material | Brass shell and collet nut , nickel plated. Brass latch sleeve and mid pieces |
| Conductor Structure | Brass gold plated |
| Insulation | Peek |
| Conductor diameter | 0.5 mm |
| Maximum contact resistance | 8.7 mOhm |
| Rated current | 2 A |
| Test voltage ( Contact - Shell ) | 0.9 KV ( DC ) |
| Adapter cable | 1.00-6.40mm |
Description :

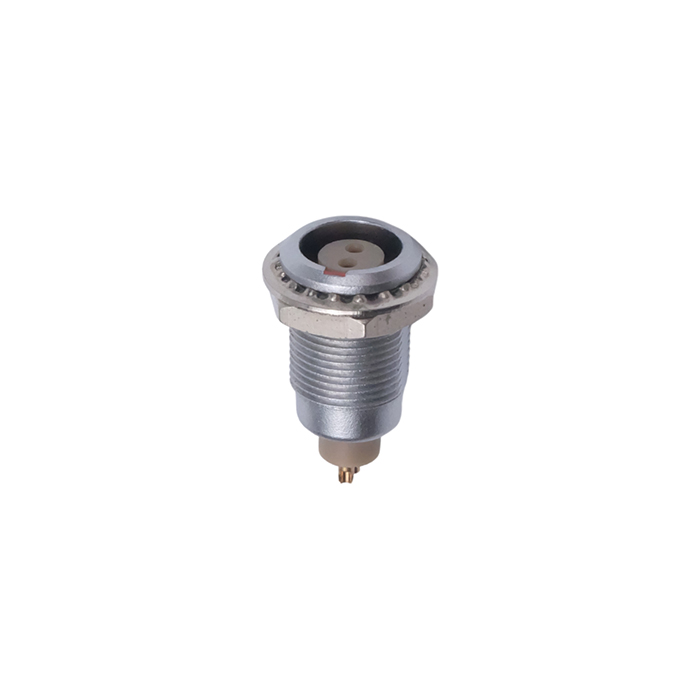

Push-Pull Self-locking Connector Model: TTLGGD04CLL
Push-Pull Self-locking Fixed Receptacle Size TT , 4 Socket Contacts, Solder , 1.00-6.40mm Collet – Cross Reference/Equivalent: EGG.TT.304.CLL
Datasheet:
