Main Information :
| Shell style | Straight plug |
| Internal components | 6 Pins |
| Sheating material | Brass shell and collet nut , nickel plated. Brass latch sleeve and mid pieces |
| Conductor Structure | Brass gold plated |
| Insulation | Peek |
| Conductor diameter | 1.3 mm |
| Maximum contact resistance | 3.6 mOhm |
| Rated current | 12 A |
| Test voltage ( Contact - Shell ) | 2 KV ( DC ) |
| Adapter cable | 7.60-8.00mm |
Description :

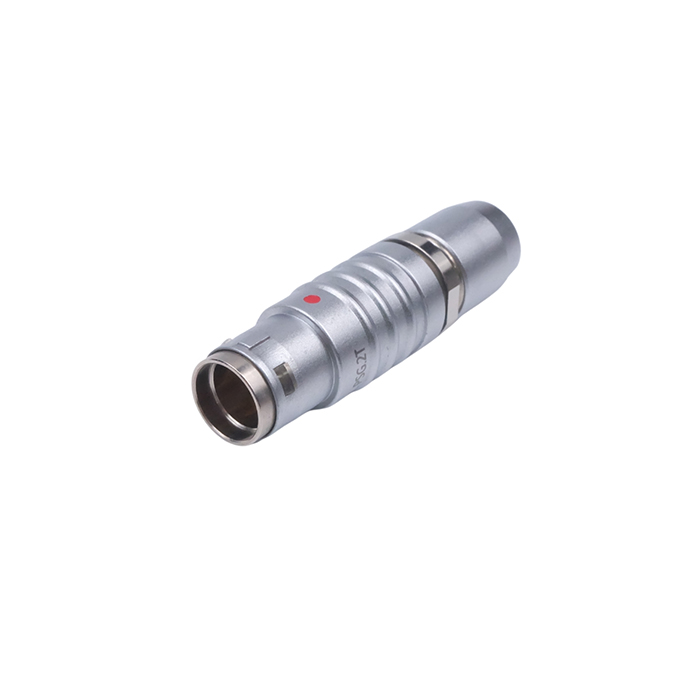

Push-Pull Self-locking Connector Model: 2TRGGD06CLAC80
Push-Pull Straight plug Shell Size 2T , 6 Socket Contacts, Solder, 7.60-8.00mm Collet – Cross Reference/Equivalent: FGG.2T.306.CLAC80
Datasheet:
