Main Information :
| Shell style | Fixed receptacle |
| Internal components | 16 Pins |
| Sheating material | Brass shell and collet nut , nickel plated. Brass latch sleeve and mid pieces |
| Conductor Structure | Brass gold plated |
| Insulation | Peek |
| Conductor diameter | 0.7 mm |
| Maximum contact resistance | 6.1 mOhm |
| Rated current | 6 A |
| Test voltage ( Contact - Shell ) | 1.8 KV ( DC ) |
| Adapter cable | 1.00-12.60mm |
Description :

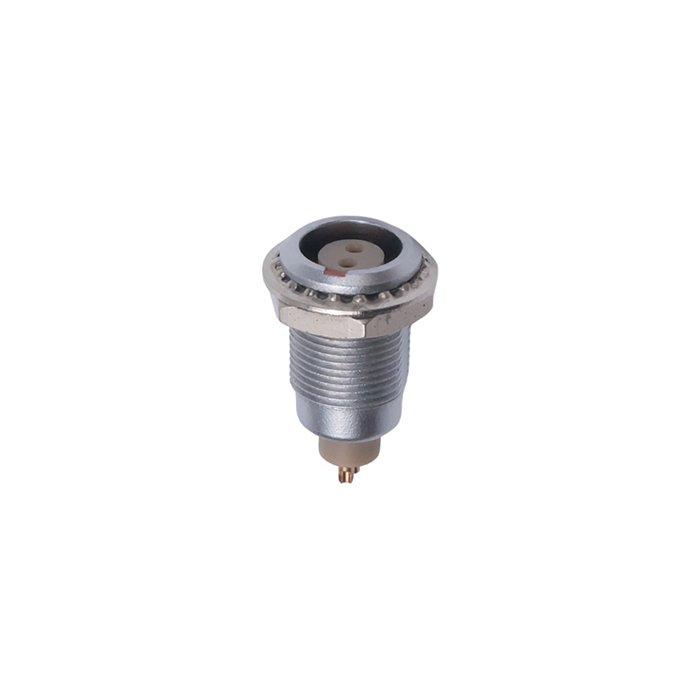

Push-Pull Self-locking Connector Model: 2TLGGD16CLL
Push-Pull Self-locking Fixed Receptacle Size 2T , 16 Socket Contacts, Solder , 1.00-12.60mm Collet – Cross Reference/Equivalent: EGG.2T.316.CLL
Datasheet:
