Main Information :
| Shell style | Fixed receptacle |
| Internal components | 1 Pins |
| Sheating material | Brass shell and collet nut , nickel plated. Brass latch sleeve and mid pieces |
| Conductor Structure | Brass gold plated |
| Insulation | Peek |
| Conductor diameter | 0.7 mm |
| Maximum contact resistance | 6.1 mOhm |
| Rated current | 4 A |
| Test voltage ( Contact - Shell ) | 2.1 KV ( DC ) |
| Adapter cable | —— |
Description :

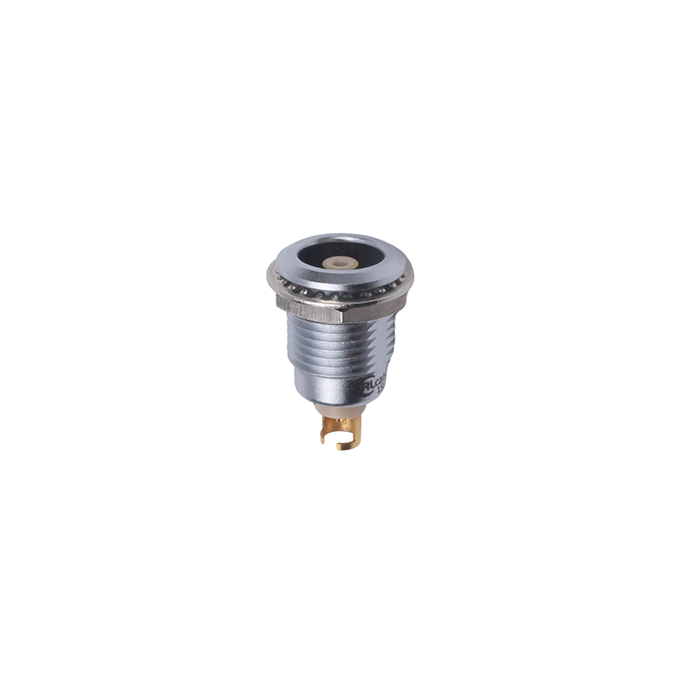

Push-Pull Self-locking Connector Model: 00LRAD01CLL
Push-Pull Self-locking Fixed Receptacle Size 00 , 1 Socket Contacts, Solder – Cross Reference/Equivalent: ERA.00.250.CTL
Datasheet:
